1. Hot-dip galvanized steel water tank (manufactured according to the national standard gb02s101)
2. Compared with the assembled enamel steel water tank, the hot-dip galvanized water tank has the same structure, material selection and assembly method, and the difference lies in the anti-corrosion method.
3. The hot-dip galvanized water tank adopts advanced technology, selects high-quality materials, and is hot-dip galvanized to form a dense galvanized layer on the surface of the water tank, which penetrates with the steel plate interface ions and forms a diffusion layer, which increases the galvanized surface Adhesion strength. The galvanized surface is smooth, easy to clean, and corrosion-resistant. The steel plate assembly structure is not easy to deform, strong shock resistance, and high impact resistance. After extensive use for a long time, it has shown good results and has been well received by users.

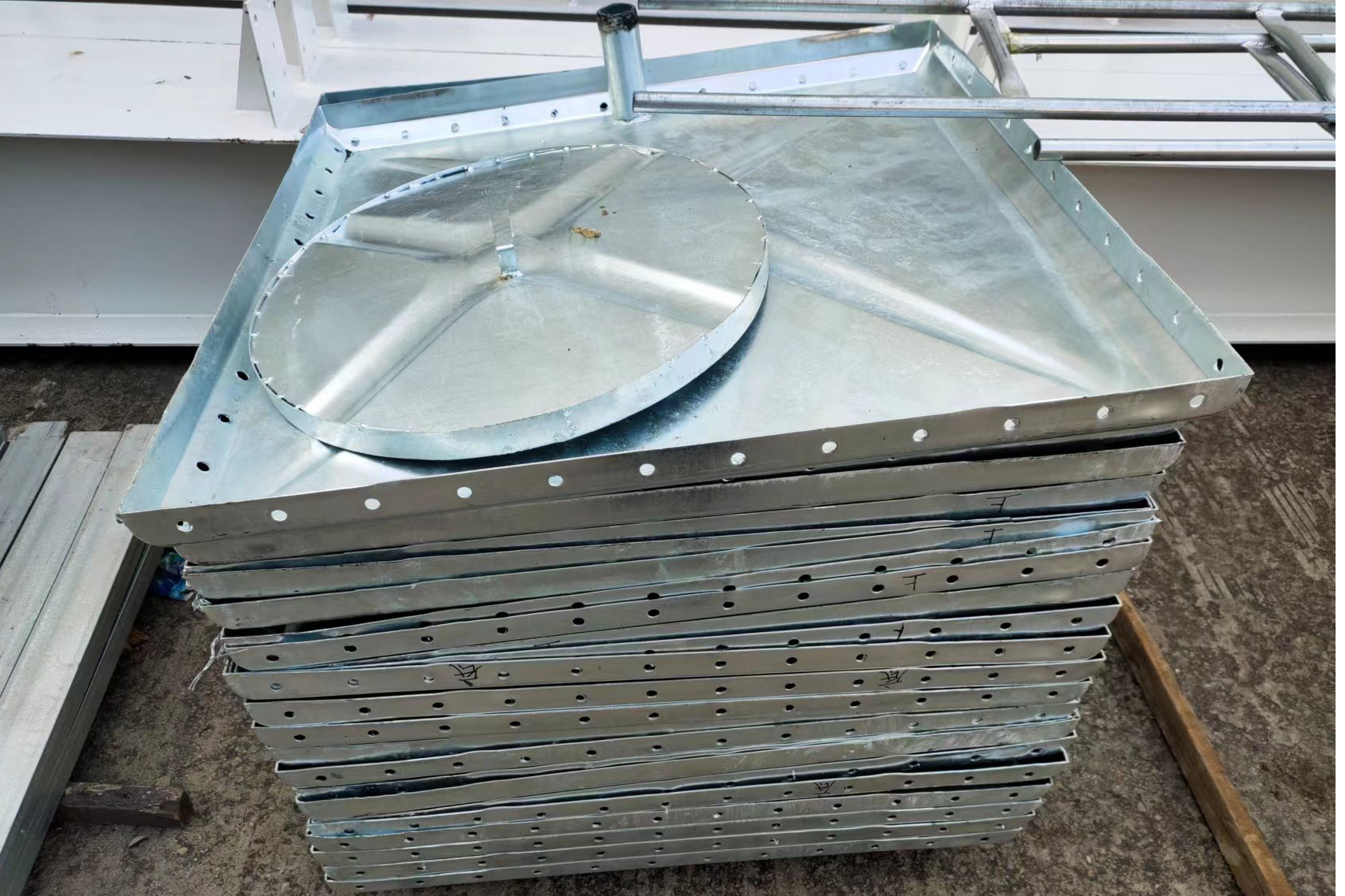

4. The hot-dip galvanized water tank is made of q235 steel plate, stamped to form 1000*1000 and 1000*500 500*500 standard blocks, drilled around the periphery, galvanized, and assembled on site. During assembly, the standard blocks are sealed with silicone and bolted .
5. Hot-dip galvanized water tank This product is suitable for storage and adjustment water tanks for building water supply, expansion and condensation water tanks for heating systems, and temporary water storage tanks for construction, geological survey, industry, and national defense projects.
6. The diameter and position of the inlet pipe, outlet pipe and overflow pipe of the hot-dip galvanized water tank are determined by the design; there should be no less than 700mm channels around the water tank, and no less than 600mm at the bottom and top of the tank. During installation, the connection gap around the box bottom and between the box bottom standard fast should be located on the support.
7. Anti-corrosion: hot-dip galvanized water tank and accessories are all galvanized.
8. Water filling test of hot-dip galvanized water tank: after the water tank is installed, close the outlet pipe and drain pipe, open the water inlet pipe, check while draining the water, until it is full, it is qualified if there is no water seepage for 2-3 hours
9. The hot-dip galvanized water tank has the test report of the national authoritative testing department,
9.1 When ordering, the size of the water tank, the position of the connection pipe and the size of the pipe diameter should be provided.
9.2 It is advisable to use storage water at a temperature of 4-65°C. If the storage water temperature is higher than this value, it can be raised when ordering, and it will be resolved separately.
9.3 The load of the water tank to the ground shall be determined by the structural designer.
10. Water filling test of hot-dip galvanized water tank: After the water tank is installed, close the outlet pipe and drain pipe, open the water inlet pipe, and check until it is full while draining the water. It is qualified if there is no water seepage for 2-3 hours.
11. The hot-dip galvanized water tank has the test report and sanitation license of the national authoritative testing department.
12. Instructions for selection of hot-dip galvanized water tank:
12.1 When ordering, the size of the water tank, the position of the connecting pipe, and the size of the pipe diameter should be provided.
12.2 It is advisable to use storage water at a temperature of 4-65°C. If the storage water temperature is higher than this value, it can be raised when ordering, and it will be resolved separately.
12.3 The load of the water tank to the ground shall be determined by the structural designer.
12.4 When the connection position of the water tank provided by the user is just at the seam of the board, the company needs to adjust it, and the diameter of the pipe remains unchanged.
13. Application of hot-dip galvanized water tank
Galvanized water tanks are used for storage and adjustment of building water supply, expansion and condensation water tanks of heating systems, and temporary water storage tanks for construction, geological survey, industry, and national defense projects.
